FD-60D -High-speed, three-side-seal, automatic pouch making machine- | Products Information

3servo system

Maximum pouch making shot: 240 CPM

*Pouch making capacity depends on film material and thickness.

Number 1 machine for center press-seal pouches

840 mm long back-seal heat sealer enables long film feed at high speed.
Individual heating management in two places on the longitude heat sealer ensures beautiful appearance and quality seal strength.

Product Features

FD-60D is a back-seal, central press-seal machine, capable of high speed bag making at up to 240 CPM.
With the film roll air shaft, film roll changes are made easily and quickly.
An 840 mm long back-seal heat sealer enables long film feeds and zoned heaters allow two separate locations for temperature monitoring.
Control Unit enables edge position control (EPC) adjustment during bag extraction. LCD display of movement avoids necessity for round trip between bag extraction and roll film units.
Individual heating management in two places on the longitude heat sealer ensures beautiful appearance and quality seal strength.

The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others.
Please consult with sales dept. for further information.

Pouch Making Sizes and Shapes

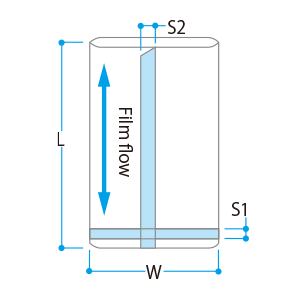

Flat pouches

W (Pouch width) :200 mm to 590 mm

L (Pouch length) :500 mm max.

S1 (Bottom seal width) :5 mm to 50 mm

S2 (Center seal width) :8 mm to 15 mm

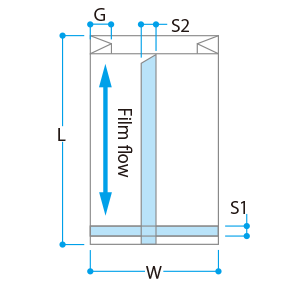

Gusset pouches

W (Pouch width) :200 mm to 590 mm-2G

L (Pouch length) :500 mm max.

G (Gusset fold width) :30 mm to 140 mm

S1 (Bottom seal width) :5 mm to 50 mm

S2 (Center seal width) :8 mm to 15 mm

W (Pouch width)	:200 mm to 590 mm
L (Pouch length)	:500 mm max.
S1 (Bottom seal width)	:5 mm to 50 mm
S2 (Center seal width)	:8 mm to 15 mm

W (Pouch width)	:200 mm to 590 mm-2G
L (Pouch length)	:500 mm max.
G (Gusset fold width)	:30 mm to 140 mm
S1 (Bottom seal width)	:5 mm to 50 mm
S2 (Center seal width)	:8 mm to 15 mm

*Bag sizes referenced above utilize optional devices.

FD-60D : Standard Specifications & Optional equipment

FD-60DHigh-speed, center press-seal, automatic pouch making machine

Product Features

Pouch Making Sizes and Shapes

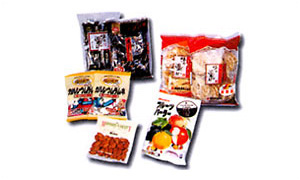

Sample Products
