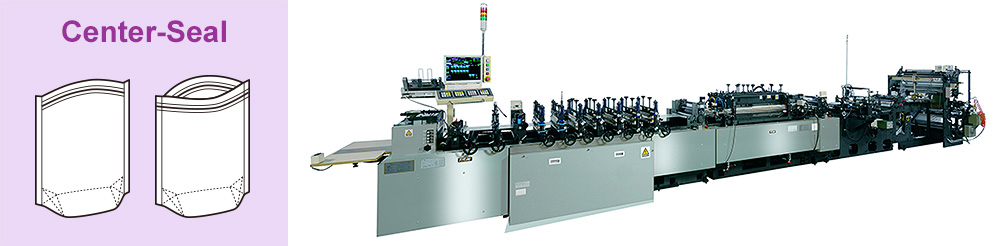

| Model | FD-35VSC<Center-Seal Series> |
|---|---|
| Function | High-speed, half fold fusion, automatic 1-line bag making machine with standing pouch and zipper seal units |
FD-35VSC : Outline
- Standard 4 servo system specification
- This model machine can make both quad-seal pouch and standing pouch with zipper seal. And, it is also the most suitable for manufacturing of many kinds of pouches or small-lot pouches
FD-35VSC : Product Features
Standing pouch with zipper seal can be made through 1 line processing. Standing pouches suitable for various purposes such as packing of food, pet food, commodities, fertilizer and seeds can be made.
As only one roll film is used to make a pouch, trouble of alignment can be saved and film loss can be decreased.
Totani's original servo motor control system realizes both high speed of 240 CPM and high quality (beautiful and high-strength sealing). Of course, most laminated films used in pouches for food and commodities are supported.
The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others.
Please consult with sales dept. for further information.
Take a look at video!
 [FD-35VLSC] 240 CPM: Stand Up Pouch with Zipper |
|
|---|---|
 |
model [FD-35VLSC] 240 CPM: Stand Up Pouch with Zipper |
Sample Products
Pouches used in a wide range of fields such as packing of candy, cereal, pet food and fertilizer
Options
- Coreless Trim Winder
- Rice bag-on-roll rewinder
- DC-2 type in-line converter
- Cutter Control System
Standard Specifications
Bag Making Sizes & Shapes
 |
Quad seal pouch Bottom Seal
*For distance between vertical heater cores, 110 to 245 mm |
 |
Standing pouch Side Seal
*For zipper pouch, 150 to 310-mm-G |
Standard Specifications
| Film | Laminated film of all kinds |
|---|---|
| Roll size | Maximum width: 1600 mm, Maximum diameter: 600 mm |
| Roll film unwinding unit | Horizontal roll film shaft, Definitive tension control system with powder brake equipment |
| Control system | Numerical control system |
| Film feed mechanism | Trinal AC servo motor drive system |
| Heat-sealer vertical movement mechanism |
Single AC servo motor drive system with functions for setting sealing time |
| Pouch making data storage function |
Sealing temperature, Pouch making speed, Sealing time, Sealing ratio, Film acceleration, others |
| Pouch manufacturing ability | Maximum cycle: 240 CMP, Maximum film speed: 50 m /min |
| Area for installation/ Weight |
About 1.26 x 11.46 m/About 4,100 kg |
| Optional equipment |
|
| ** The options mentioned above are sold separately and not included as standard equipment. ** The Totani pouch machine corresponds to the individual design and manufacture, which meets the customer's needs and installation conditions for every model. Please feel free to contact us any questions. |
|
* Due to equipment improvement, the above-mentioned figures and appearance may be changed without notice.
