Model FD-35V<Center-Seal Series>
Function High-speed, center press-seal, automatic pouch making machine
FD-35V

FD-35V : Outline

FD-35V : Product Features

  • This is a back-seal, central press-seal machine, capable of high speed bag making at up to 240 CPM.
  • With the film roll air shaft, film roll changes are made easily and quickly.
  • An 840 mm long back-seal heat sealer enables long film feeds and zoned heaters allow two separate locations for temperature monitoring.
  • CRT enables edge position control (EPC) adjustment during bag extraction. CRT display of movement avoids necessity for round trip between bag extraction and roll film units.
  • In-line conveyor (optional) makes bag stacking almost unnecessary.

The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others.
Please consult with sales dept. for further information.

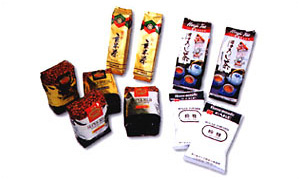

Sample Products

FD-35V

Pouches for powdered products
such as tea, coffee, etc.

Options

Standard Specifications

Bag Making Sizes & Shapes

FD-35V

Flat bags

  • W (Bag width) : 35 to 350 mm
  • L (Bag length) : up to 500 mm
  • S1 (Bottom seal width) : 5 to 50 mm
  • S2 (Center seal width) : 8 to 15 mm
FD-35V

Gusset bags

  • W (Bag width) : 55 to 350 mm
  • L (Bag length) : up to 500 mm
  • G (Gusset fold width) : 10 to 80 mm
  • S1 (Bottom seal width) : 5 to 50 mm
  • S2 (Center seal width) : 8 to 15 mm
  • S3 (Gusset seal width) : 5 to 7 mm

Standard Specifications

Film Laminated film of all kinds
Roll size Maximum width : 850 mm,
Maximum diameter : 600 mm
Roll film unwinding unit Horizontal roll film shaft, Definitive tension control system, powder brake equipment
Control system Numerical control system
Film feed mechanism Dual AC servo motor drive system
(Optional extra servo available) *1
Heat-sealer vertical
movement mechanism		 Single AC servo motor drive system
(With functions for setting sealing time)
Bag making data
storage function		 Sealing temperature, Bag making speed,
Sealing time, Sealing ratio,
Film acceleration, other
Bag making capacity Maximum number of shots : 240 shots/min,
Maximum film speed : 50 m/min *2
Area for installation, Weight About 1.48 x 8.82 m *3 / About 3,700 kg
Optional equipment
  • Rice bag roller
  • DC-2 type in-line conveyor
  • Delivery Conveyor
  • Short delivery conveyor
  • Roll film unit slitter
  • Main slitter
  • Powder Shaker
  • Double feed unit
  • Central tape unit (Max. width 50 mm)
  • Seal detector
*1 Equipment settings by display and simple keyboard entry.
Printing mark detection by mark sensor.
*2 Bag making capacity depends on film material and thickness. Number of shots and film speed are calculated separately and are not related.
*3 Allow extra space for maintenance and operating.
** The options mentioned above are sold separately and not included as standard equipment.
** Options in addition to those mentioned above can be designed and manufactured to suit customer needs. Please consult us without obligation.

* Due to equipment improvement, the above-mentioned figures and appearance may be changed without notice.
