Model CT-60DLLSC<V-Fold-Seal Series>
Function High-speed, V-Fold sealing, automatic(1)lane pouch making machine [with Stand Up PUch and Zipper Sealing] from one piece of web

240 CPM! Amazing speed with the great quality.

CT-60DLLSC

CT-60DLLSC : Outline

CT-60DLLSC : Product Features

This is a High speed stand-up or flat pouch making machine for the production of large format pouches or bags. By V-Folding a single web, print registration is possible for front and back panels and gusset (when applicable). Gusseting equipment and corner sealing is available for forming a bottom gusset. Stand-up or flat Pouches made on this machine have uses including the packaging of pet foods, cereals, daily necessities, house hold cleaning products, mulch, insecticide, fertilizer, seeds and others. Totani's design produces large Capacity, High Quality, and Stand Up Pouches with or without zipper closure.

Totani's unique (4) "servo motor control system" provides high speed stand-up or flat pouch making at speeds of 240 CPM*, producing exceptional looking, high strength seals.
Totani's original "Water Cooled" zipper sealing plate, supplied as standard equipment, provides an exceptional looking high quality zipper seal.
*Pouch making capacity depends on film material and thickness.

Most laminated films are acceptable for the manufacture of food grade and daily goods pouches.

The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others.
Please consult with sales dept. for further information.

Take a look at video!

SCOOP! 212CPM!! <Stand Up Zipper pouch>
SCOOP! 212CPM!! <Stand Up Zipper pouch> Amazing speed with the great quality.
Would like to share our experience?
Once scene from our warehouse.

Sample Products

CT-60DLLSC

Standard Specifications

Bag Making Sizes & Shapes

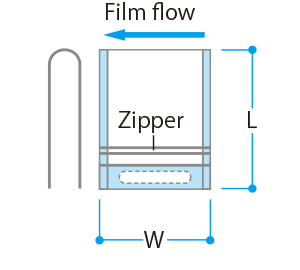

Zipper bags 1-line
(without gusset)

CT-60DLLSC

  • W  (Bag width) : 450 mm max.
  • L  (Bag length) : 600 mm max.

Standing pouch with zipper bag making
1-line gusset bag making

CT-60DLLSC

  • W  (Bag width) : 450 mm max.*
  • L  (Bag length) : 600 mm - G max.
  • G  (Bottom gusset depth-gusset fold width) : 100 mm max.
* Corner sealing of bottom gusset is available under bag width 410 mm.

Standard Specifications

Film Laminated film of all kinds
Roll size Maximum width : 1400 mm,
Maximum diameter : 600 mm
Roll film unwinding unit Horizontal roll film shaft, Triangular plate half hold fusion system, Definitive tension control system with powder brake equipment
Control system Numerical control system
Film feed mechanism Trinal AC servo motor drive system
(Optional extra servo available) *1
Heat-sealer vertical
movement mechanism
Single AC servo motor drive system
(With functions for setting sealing time)
Bag making data
storage function
Sealing temperature, Bag making speed,
Sealing time, Sealing ratio,
Film acceleration, others
Bag making capacity Maximum cycles : 240 CPM,
Maximum film speed : 45 m/min *2
Area for installation,
Weight
About 1.76 x 14.80m/About 6,800kg
Optional equipment
  • Inverter controlled edge roller
  • Indexing conveyor
  • Powder Shaker
  • punch equipment (various)
  • Alarm Equipment (various)
*1 Equipment settings by display and simple keyboard entry.
Printing mark detection by color mark sensor.
*2 Bag making capacity depends on film material and thickness. Number of shots and film speed are calculated separately and are not related.
*3 Allow extra space for maintenance and operating.
** The options mentioned above are sold separately and not included as standard equipment.
** The Totani pouch machine corresponds to the individual design and manufacture, which meets the customer's needs and installation conditions for every model. Please feel free to contact us any questions.

* Due to equipment improvement, the above-mentioned figures and appearance may be changed without notice.
